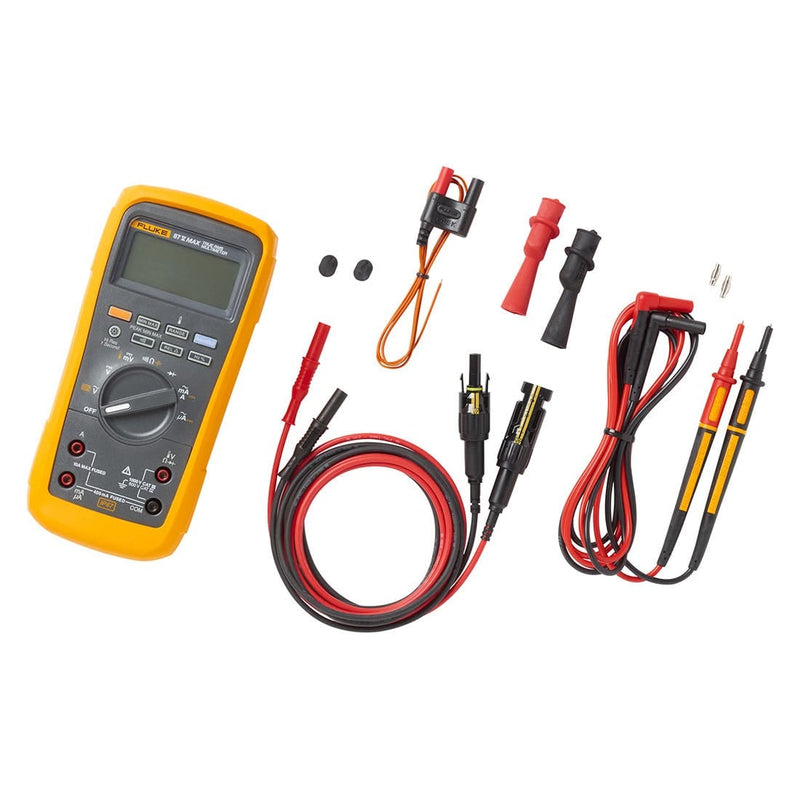

Fluke 87V MAX Solar Multimeter Kit with PVLEAD1 MC4 Test Leads

The Fluke 87V MAX PVLEAD1 kit pairs the rugged 87V MAX true-RMS digital multimeter with PVLEAD1 MC4 test leads for solar work. The MC4 leads connect safely to individual panels or a series string, so installers can validate voltage across a PV array.

The 87V MAX measures AC and DC voltage to 1000 V with 0.05% basic DC accuracy, AC and DC current to 10 A, resistance to 50 MΩ, capacitance to 9999 µF and frequency to 200 kHz. A built-in thermometer reads from -200 °C to +1090 °C, so voltage, current and temperature checks come from one meter.

Built for extreme conditions, the 87V MAX is sealed to IP67, tested to a 4 meter drop and rated to operate from -15 °C to +55 °C. A removable holster stores the test leads and holds a probe for one-handed work, and a 6000 count display adds a 19,999 count high-resolution mode.

What's Included:

• Fluke 87V MAX true-RMS digital multimeter
• PVLEAD1 MC4 solar test leads
• Test leads (1 pair)
• Alligator clips
• 80BK integrated temperature probe
• Removable holster with test lead storage
• 9V battery (installed)

Specifications

• DC voltage: to 1000 V, ±(0.05% + 1)
• AC voltage: to 1000 V, ±(0.7% + 2) true-RMS
• DC current: to 10 A (20 A for 30 seconds), ±(0.2% + 2)
• AC current: to 10 A (20 A for 30 seconds), ±(1.0% + 2) true-RMS
• Resistance: to 50 MΩ, ±(0.2% + 1)
• Capacitance: to 9999 µF, ±(1% + 2)
• Frequency: to 200 kHz, ±(0.005% + 1)
• Temperature: -200 °C to +1090 °C (-328 °F to +1994 °F)
• Display: 6000 counts, 19,999 counts high-resolution mode, 32-segment bar graph
• Safety rating: CAT III 1000 V, CAT IV 600 V
• Protection: IP67 sealed, 4 meter (13 foot) drop tested, operates -15 °C to +55 °C
• Solar leads: PVLEAD1 MC4 test leads for PV panels and strings
