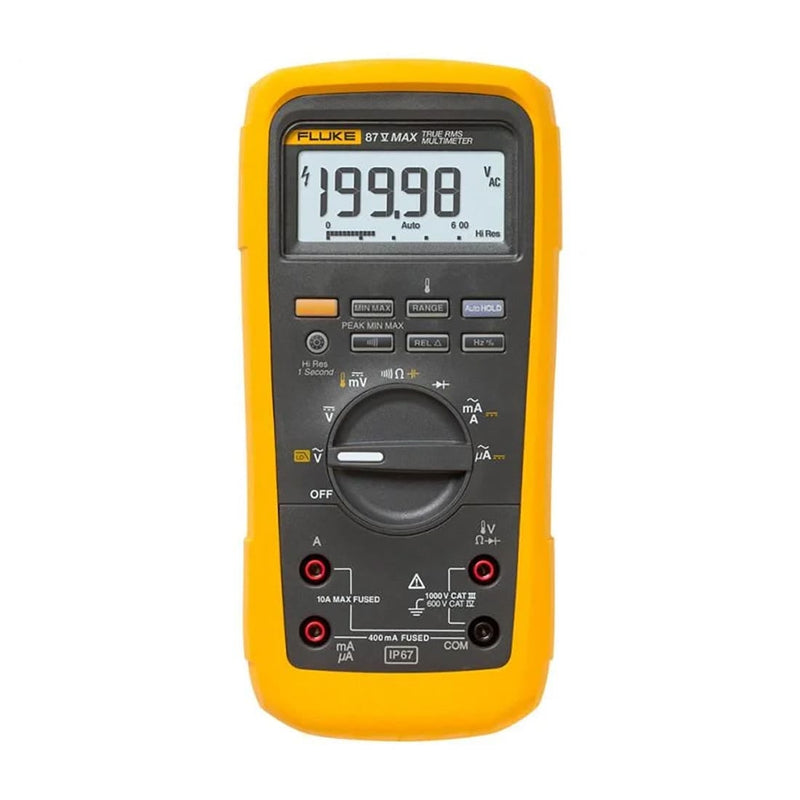

Fluke 87V MAX True-RMS Industrial Digital Multimeter
Authorized Dealer
As an authorized dealer of these brands, these instruments ship genuine and factory sealed, direct from the maker, with the manufacturer documentation in the box.
The Fluke 87V MAX is a rugged true-RMS industrial digital multimeter built for demanding work sites. It measures AC and DC voltage to 1000 V with 0.05% basic DC accuracy and reads true-RMS AC, so voltage and current stay accurate on non-linear signals.
The meter covers AC and DC current to 10 A, resistance to 50 MΩ, capacitance to 9999 µF and frequency to 200 kHz, and a built-in thermometer reads from -200 °C to +1090 °C. A low-pass filter supports accurate voltage and frequency readings on variable frequency drives, and peak capture records transients as fast as 250 µs.

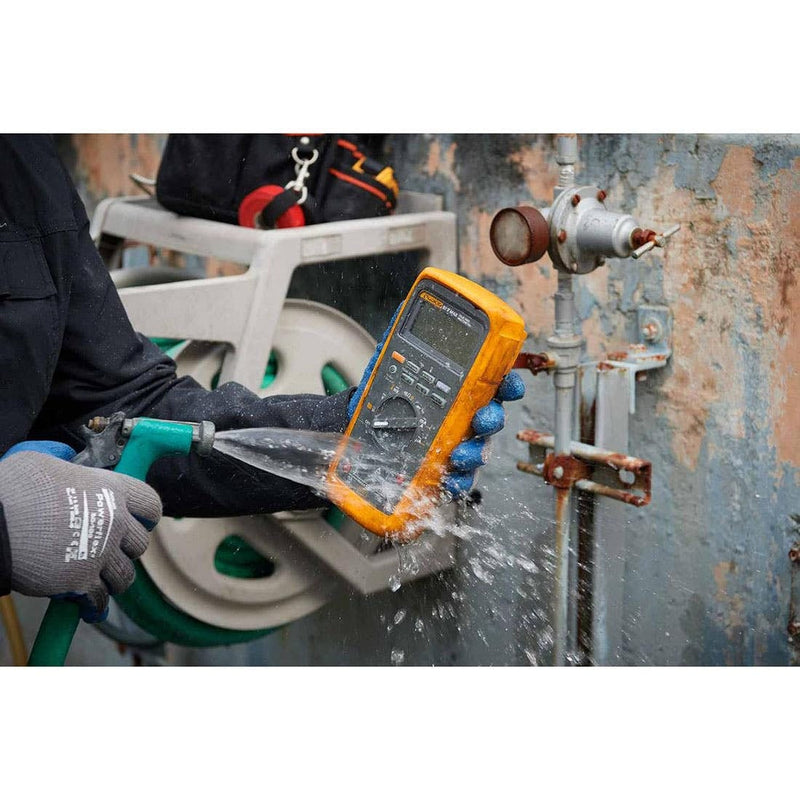

The 87V MAX is sealed to IP67 against water and dust and is tested to survive a 4 meter drop, with an operating range of -15 °C to +55 °C. A two-level backlit display, a 19,999 count high-resolution mode and a removable holster for one-handed work round out the meter.

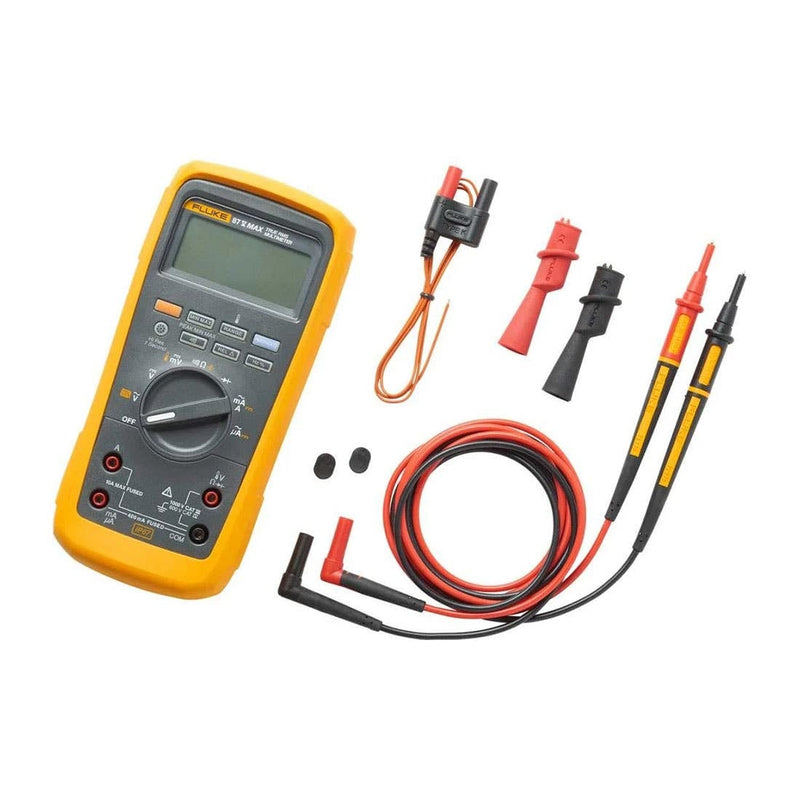

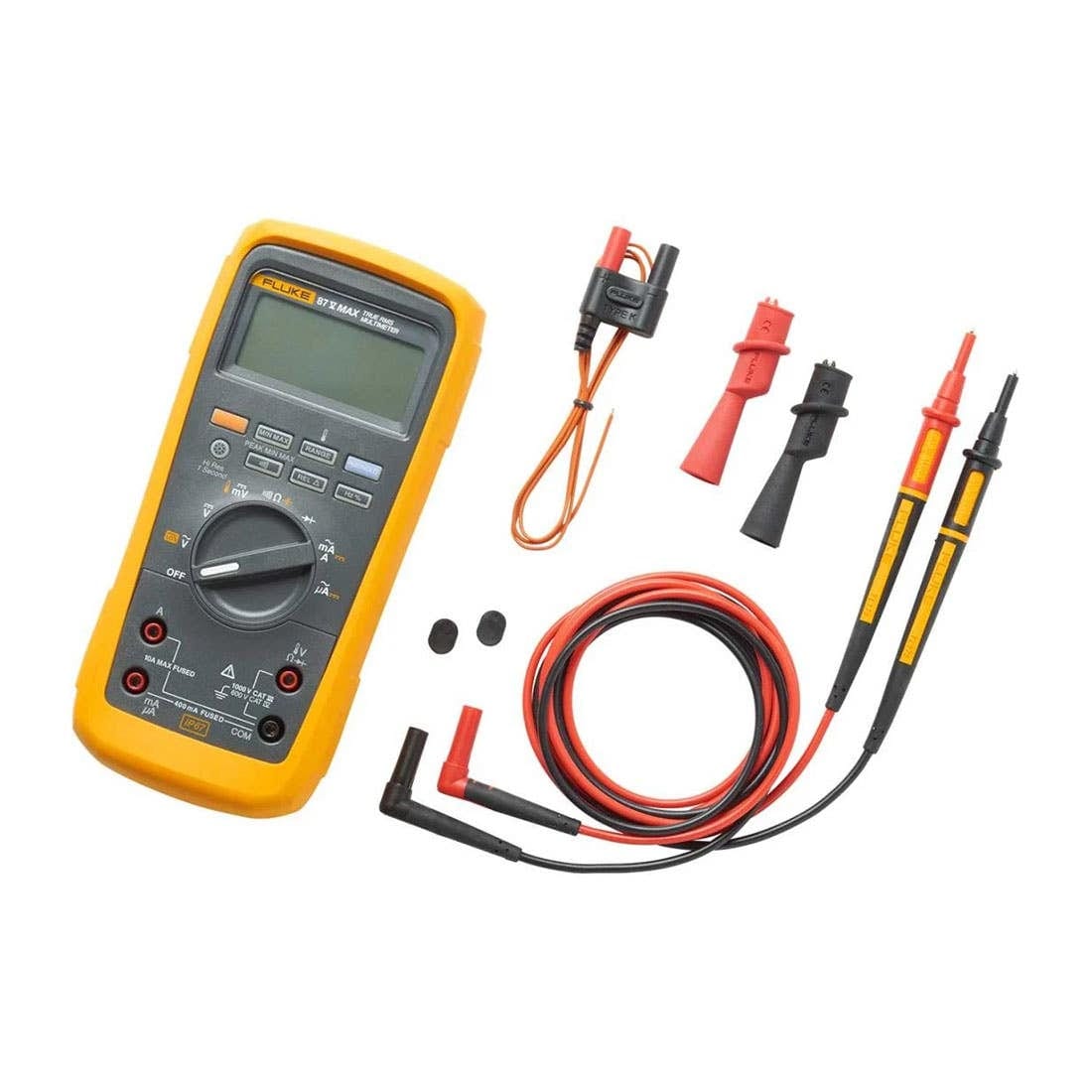

What's Included:
- Fluke 87V MAX true-RMS digital multimeter
- Test leads (1 pair)
- Alligator clips
- 80BK integrated temperature probe
- Removable holster with test lead storage
- 9V battery (installed)
Specifications
- DC voltage: to 1000 V, ±(0.05% + 1)
- AC voltage: to 1000 V, ±(0.7% + 2) true-RMS
- DC current: to 10 A (20 A for 30 seconds), ±(0.2% + 2)
- AC current: to 10 A (20 A for 30 seconds), ±(1.0% + 2) true-RMS
- Resistance: to 50 MΩ, ±(0.2% + 1)
- Capacitance: to 9999 µF, ±(1% + 2)
- Frequency: to 200 kHz, ±(0.005% + 1)
- Temperature: -200 °C to +1090 °C (-328 °F to +1994 °F)
- Display: 6000 counts, 19,999 counts high-resolution mode, 32-segment bar graph
- Safety rating: CAT III 1000 V, CAT IV 600 V
- Protection: IP67 sealed, tested to a 4 meter (13 foot) drop
- Operating temperature: -15 °C to +55 °C, to -40 °C for up to 20 minutes
