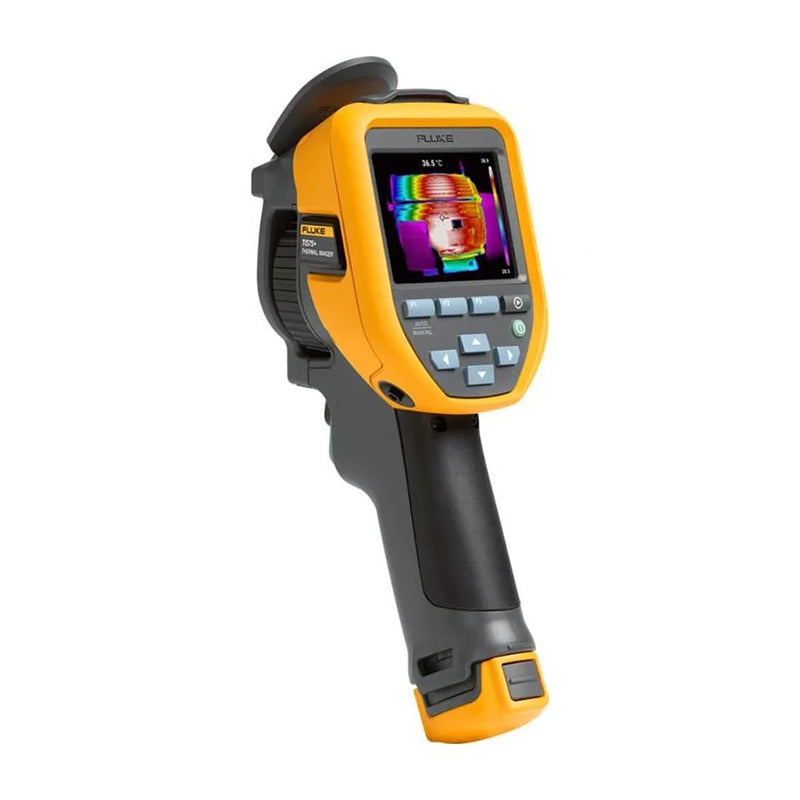

Fluke TiS75+ 384 x 288 thermal imaging camera front view with touchscreen display

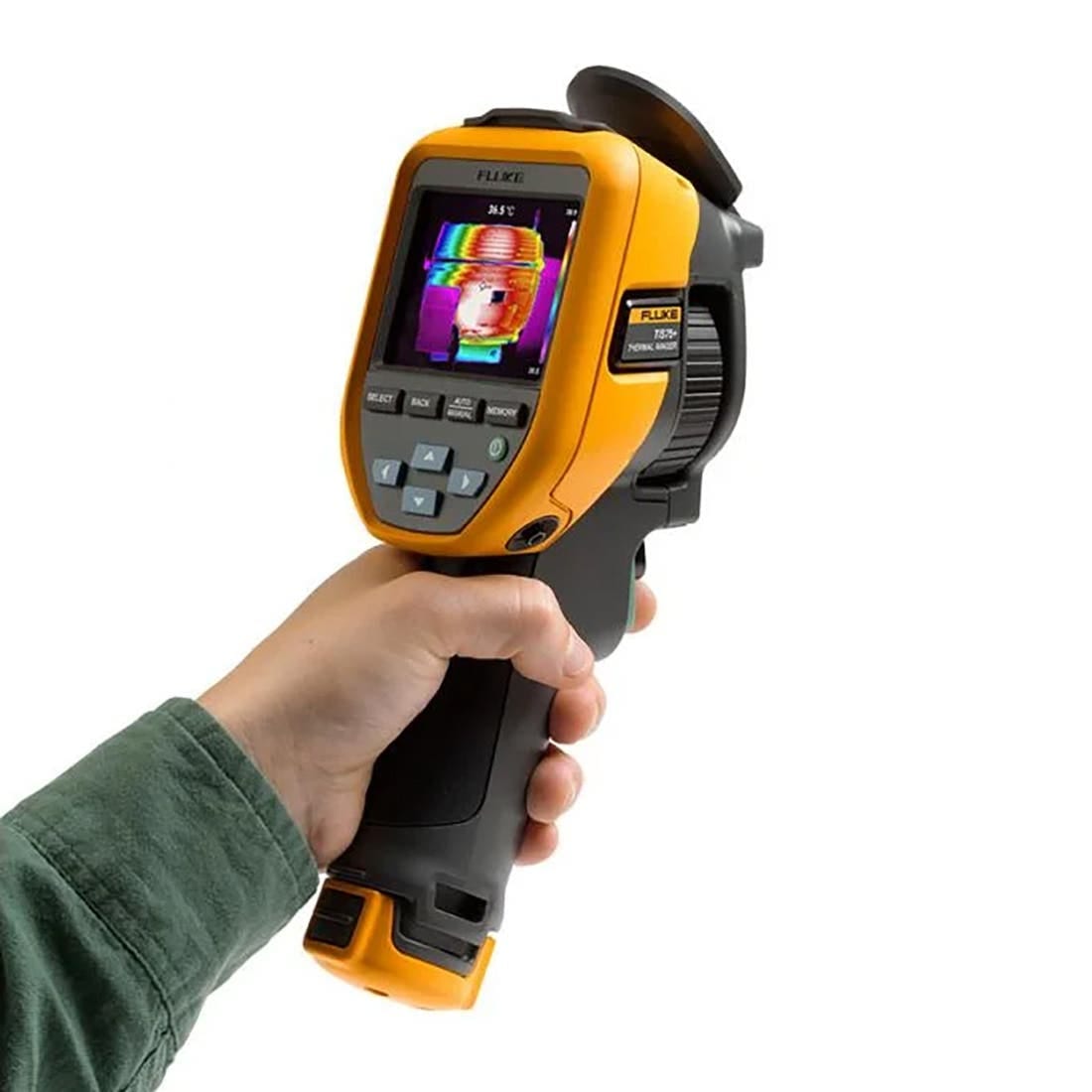

Fluke TiS75+ thermal camera capturing a blended IR-Fusion image of electrical equipment

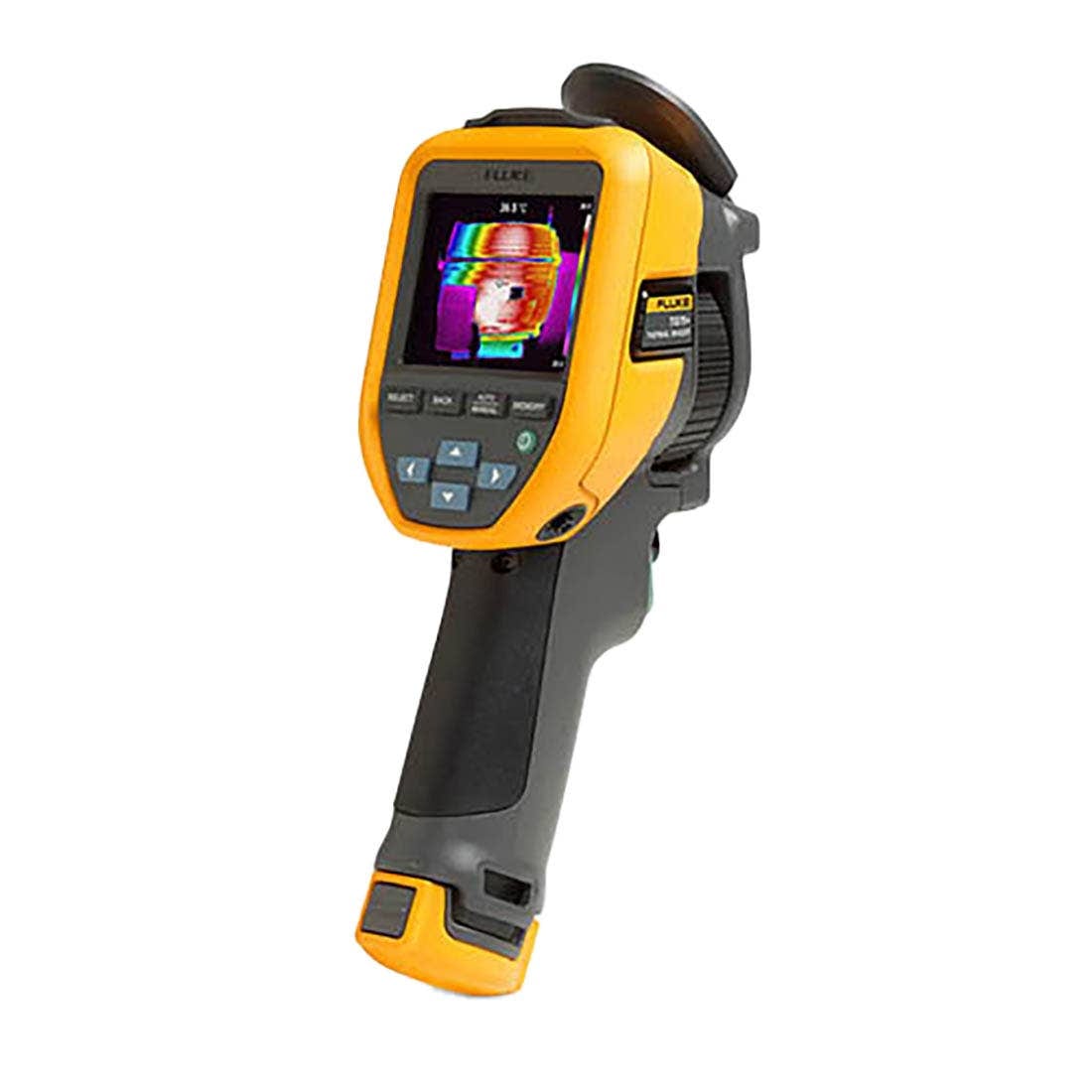

Fluke TiS75+ thermal imaging camera side profile showing lens and grip

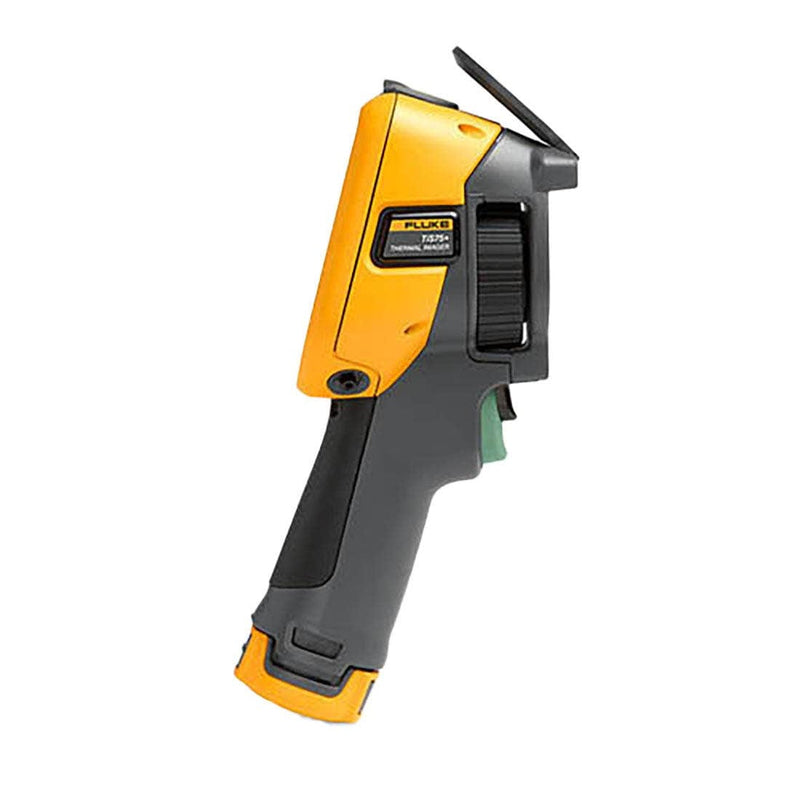

Fluke TiS75+ thermal camera 3.5 inch touchscreen showing a thermal image

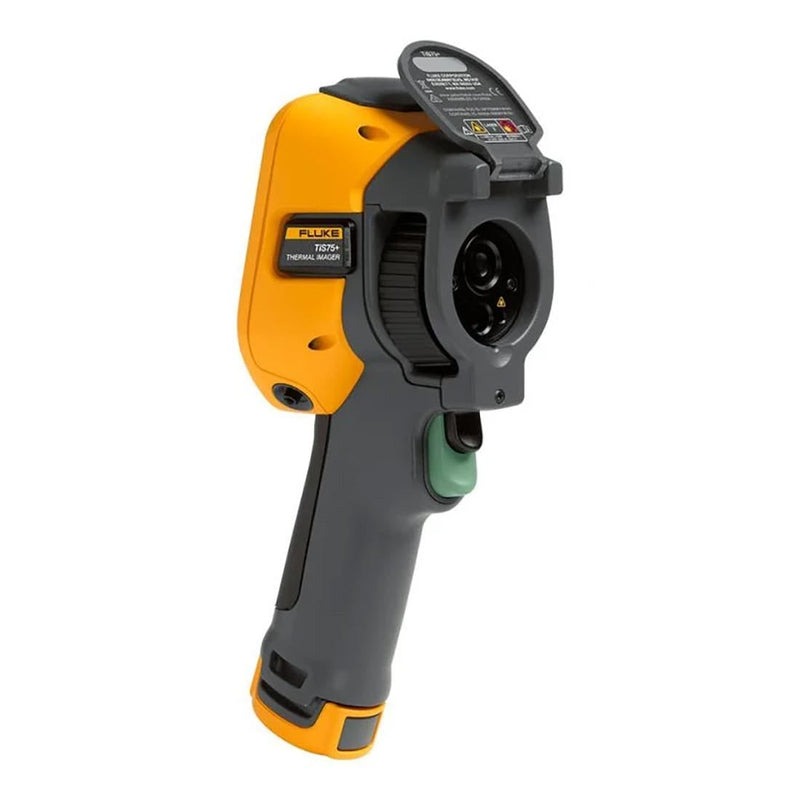

Fluke TiS75+ thermal imaging camera held in hand during an inspection

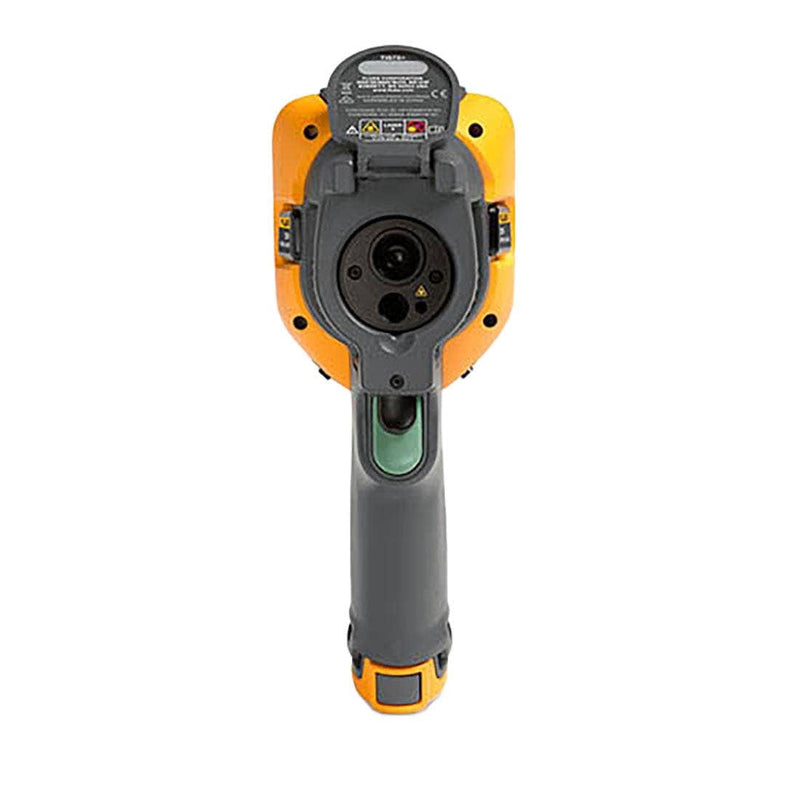

Fluke TiS75+ thermal camera with lithium-ion smart batteries and charger
Fluke TiS75+ 384 x 288 thermal imaging camera front view with touchscreen display
Fluke TiS75+ thermal camera capturing a blended IR-Fusion image of electrical equipment
Fluke TiS75+ thermal imaging camera side profile showing lens and grip
Fluke TiS75+ thermal camera 3.5 inch touchscreen showing a thermal image
Fluke TiS75+ thermal imaging camera held in hand during an inspection
Fluke TiS75+ thermal camera with lithium-ion smart batteries and charger

Fluke TiS75+ 384 x 288 Thermal Imaging Camera

by Fluke
$6,388.95 - $6,388.95
$6,388.95
$6,388.95 - $6,388.95
$6,388.95
Genuine Factory Instrument
30 Day Return Policy
Free Shipping in the US
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Authorized Dealer

As an authorized dealer of these brands, these instruments ship genuine and factory sealed, direct from the maker, with the manufacturer documentation in the box.

The Fluke TiS75+ is a handheld thermal imaging camera built around a 384 x 288 infrared detector, which is 110,592 individual temperature pixels. That resolution resolves small hot spots and fine temperature gradients on motors, electrical panels, connections and building surfaces, so problems stand out clearly from a safe working distance.

The TiS75+ measures surface temperatures from -20 C to 550 C (-4 F to 1022 F) and refreshes at 27 Hz for smooth live imaging. A thermal sensitivity of 40 mK reveals subtle heat patterns, while an accuracy of plus or minus 2 C or 2 percent keeps readings dependable for documentation and trending.

IR-Fusion technology pairs every infrared image with a 5 MP visible picture, and picture-in-picture lets you frame the exact area of concern. A 3.5 inch touchscreen, manual focus with a 1 meter marker and Fluke Connect wireless sharing make the camera fast to use through a full day of inspections.

Rated IP54 and engineered to survive a 2 meter drop, the TiS75+ stands up to dust, water splashes and the knocks of a working environment.

What's Included:

  • Fluke TiS75+ thermal imaging camera
  • Two rechargeable lithium-ion smart batteries
  • Two-bay battery charger
  • AC power adapter
  • 4 GB SD memory card
  • USB cable
  • Rugged hard carrying case
  • Soft transport bag
  • Adjustable hand strap

Specifications

  • IR resolution: 384 x 288 (110,592 pixels)
  • Refresh rate: 27 Hz
  • Temperature range: -20 C to 550 C (-4 F to 1022 F)
  • Thermal sensitivity (NETD): 40 mK
  • Field of view: 42 x 30 degrees
  • Spatial resolution (IFOV): 1.91 mRad
  • Accuracy: plus or minus 2 C or 2 percent
  • Focus system: Manual focus with 1 meter focus marker
  • Display: 3.5 inch 640 x 480 LCD touchscreen
  • Visible camera: 5 MP with IR-Fusion
  • Emissivity: Adjustable 0.01 to 1.00 with material presets
  • Environmental rating: IP54, 2 meter drop tested
Fluke TiS75+ thermal camera capturing a blended IR-Fusion image of electrical equipment

See problems before they become failures

The TiS75+ turns routine inspections into a proactive maintenance program. A bright 3.5 inch touchscreen, manual focus and a 40 mK thermally sensitive detector make it easy to frame a target, capture a blended image and move on to the next asset with confidence.

Key Features

384 x 288 detector resolution

A 110,592 pixel infrared detector captures crisp thermal images, so small hot spots and temperature gradients stand out clearly for faster diagnosis.

IR-Fusion with picture-in-picture

Every infrared image is paired with a 5 MP visible photo. Blend the two at preset levels or use picture-in-picture to pinpoint the exact area under inspection.

Wide -20 C to 550 C range

Measure surfaces from -20 C to 550 C (-4 F to 1022 F), covering building envelopes, electrical panels, motors and process equipment with one camera.

Fluke TiS75+ thermal imaging camera side profile showing lens and grip

Fluke Connect asset tagging

Scan a QR code on each asset to sort saved images automatically by equipment, then share results over Wi-Fi and build reports without renaming files by hand.

Dew point color alarm

A built-in dew point calculation and color alarm highlight where condensation is likely to form, a help for building envelope and moisture inspections.

Built for the field

An IP54 rating and 2 meter drop design let the TiS75+ shrug off dust, water splashes and the bumps of daily industrial work.

Questions and Answers

Answers to the things buyers ask most

What is the infrared resolution of the Fluke TiS75+?

The TiS75+ uses a 384 x 288 detector, which is 110,592 individual temperature pixels for detailed thermal images.

What temperature range does the TiS75+ measure?

It measures surface temperatures from -20 C to 550 C, or -4 F to 1022 F.

Is the TiS75+ rugged enough for field work?

Yes. It carries an IP54 rating against dust and water and is engineered to withstand a 2 meter drop.

Can I share images wirelessly?

Yes. The TiS75+ is Fluke Connect compatible, so you can transfer images over Wi-Fi and organize them with asset tagging.
